The Tide
Swim Spa
4.75mm reinforced Aristech® acrylic. Balboa control. Continuous-flow current. 4m to 5.95m configurations.
What The Tide Is
The Tide is a swim spa combining a continuous-flow swimming system with a pressurised massage jet section. The current is generated by dedicated flow nozzles that produce a constant, laminar water stream — allowing uninterrupted swimming without turning.
This swim spa is built on a 4.75mm Aristech® reinforced acrylic shell — thicker than the 3.2mm used in standard spa units, and structurally necessary at this scale given the load of up to 10,800 litres of water. The shell is supported by a full stainless steel chassis for torsional rigidity.
Available in four configurations. All models are 2.4m wide and 1.5m deep. The 1.5m depth is the defining feature — it supports a full swimming stroke, which most comparable models at 1.2m depth cannot.
The filled operating weight of the largest configuration (5.95m) is approximately 12,840 kg including water. This is a civil engineering installation, not a garden appliance. A reinforced concrete foundation of at least 15cm is the standard requirement.
The control system is Balboa (USA) — the global industry standard for swim spa control electronics. It manages water temperature, pump operation, lighting and sanitation cycles.
OxiusPro coordinates configuration, delivery and installation through local partners. Site assessment before order is a required step — not optional.

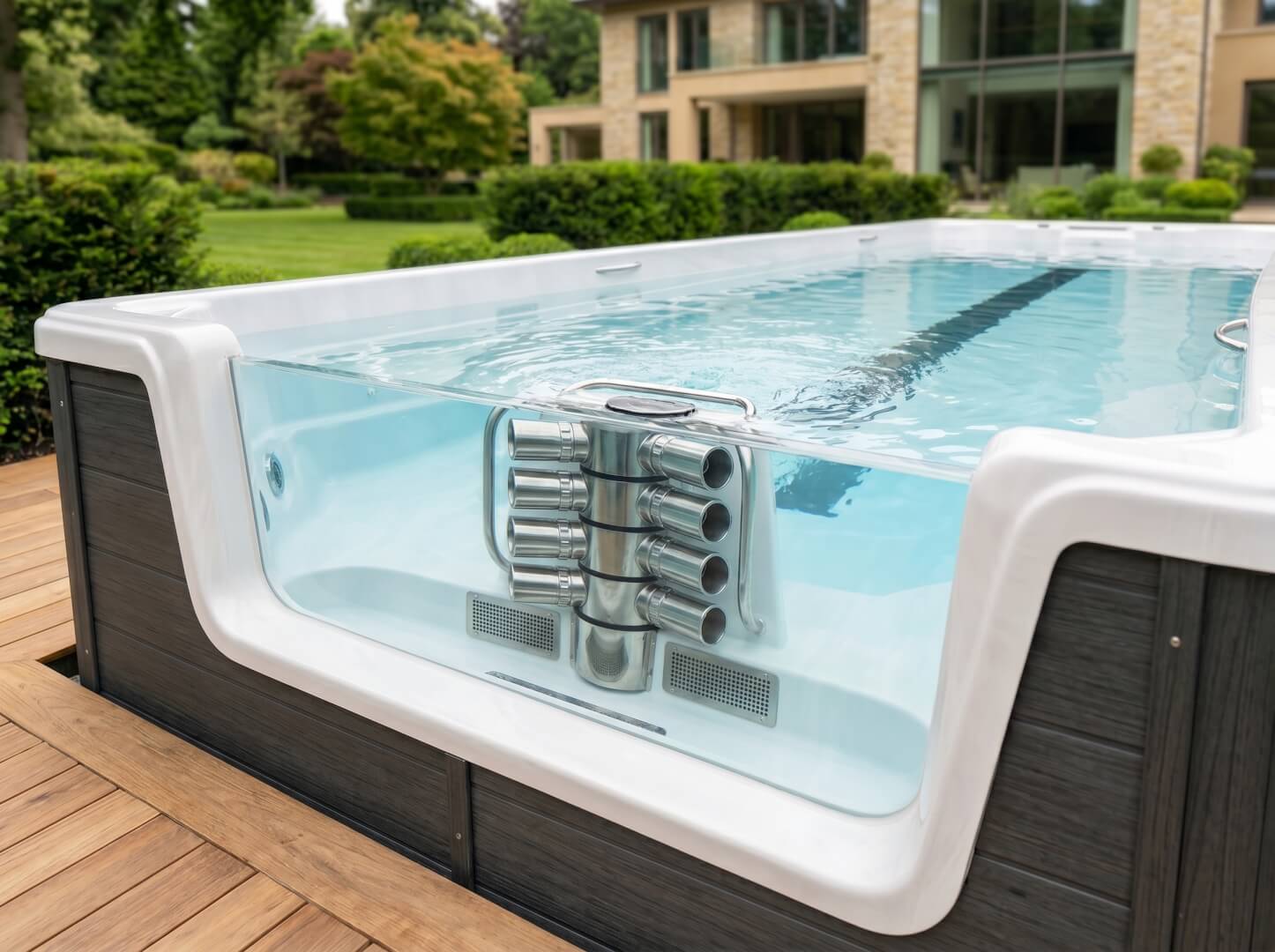

River Nozzle
Current Technology
The continuous current is generated by large river nozzles integrated into the swim end wall. These produce a constant, laminar flow stream strong enough for uninterrupted swimming. This is the defining technical feature of The Tide.
- River nozzle technology — laminar flow
- Manual waterproof rotary flow controls
- Lane guide indicator strip on pool floor
- Separate massage jet section at spa end

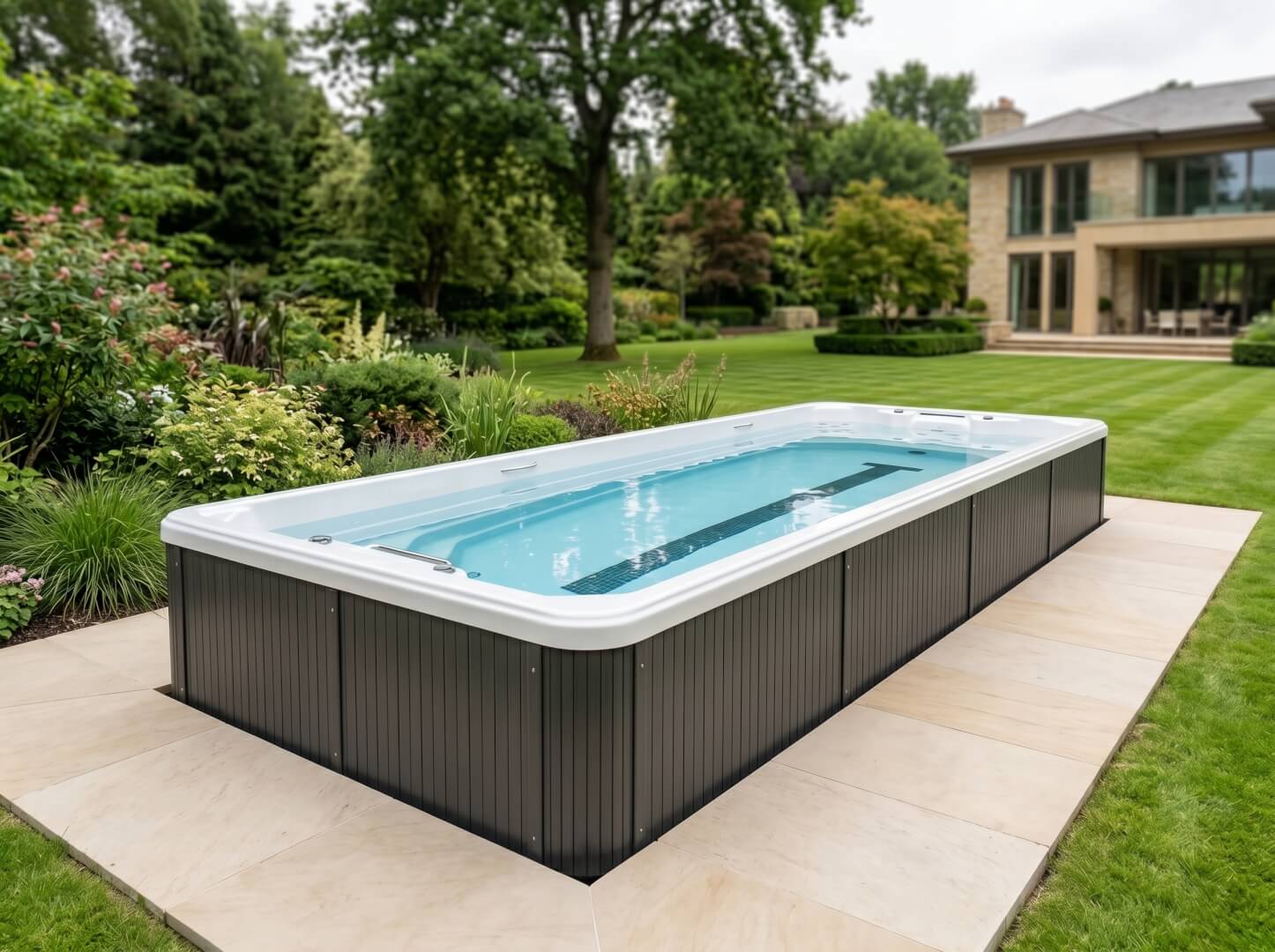

Full Length
Configuration
The Tide
Swim Series
High-Jet Configuration
- Dimensions: 2.4 × 4.0 × 1.5m
- Water Volume: 6,800 litres
- Jets: 60
- Pumps: 4 × 3HP
- Ozone: 1 unit
High-Volume Configuration
- Dimensions: 2.4 × 4.0 × 1.5m
- Water Volume: 8,600 litres
- Jets: 21
- Pumps: 3 × 3HP
- Ozone: 1 unit
Extended Configuration
- Dimensions: 2.4 × 5.0 × 1.5m
- Water Volume: 8,600 litres
- Jets: 59
- Pumps: 4 × 3HP
- Ozone: 1 unit
Full-Length Configuration
- Dimensions: 5,950 × 2,400 × 1,500 mm
- Water Volume: 10,800 litres
- Jets: 75
- Pumps: 5 × 3HP
- Ozone: 2 units
- LED Points: 34
All configurations share the same 2.4m width, 1.5m depth, 4.75mm reinforced Aristech® acrylic shell and full stainless steel chassis.
Seating, Jets &
LED Lighting
The spa end of The Tide features an ergonomic seating zone with hydrotherapy jets positioned for shoulders, back, thighs, calves and feet. This is a full swim spa — not only a swimming lane.
- Moulded acrylic seating with back support
- Massage jets at shoulder, lumbar and foot level
- 34 integrated LED lighting points
- Bluetooth audio — waterproof speakers
- EVA seating cushions included
Shell, Structure
& Flow System
7-Layer Shell Matrix
- Layer 1: 4.75mm Aristech® acrylic interior
- Layer 2: Hand-coated vinyl reinforcement
- Layer 3: Spray-coated vinyl layer
- Layer 4: Spray-coated vinyl and fibreglass composite
- Layer 5: Unsaturated resin and fibreglass composite
- Layer 6: 30mm high-density foam insulation
- Layer 7: Cabinet insulation cotton — flame-retardant
Structural Frame
- Chassis: Full stainless steel support frame
- Cabinet: WPC exterior — multiple finishes
- Shell colours: Mahogany / Black / Light gray / Dark gray
Flow System
- Current nozzles: River nozzle technology — laminar flow
- Flow control: Manual waterproof rotary controls
- Lane guide: Indicator strip on pool floor
- Massage jets: Shoulders, back, thighs, calves and feet
Sanitation
- Ozone: Integrated — 2 units on 5.95m model
- Bottom cleaning: Floor nozzles direct sediment to filters
- UV sterilisation: Optional upgrade
Verified Specifications
Electrical & Control
- Control: Balboa Spa Control (USA)
- Voltage: 220–240V / 50Hz
- Electrical: 32A / 3-phase recommended
- Pumps: 3 to 5 × 3HP depending on model
- Thermostat: Integrated with Balboa control
- Audio: Bluetooth — built-in waterproof speakers
- Lighting: 34 internal LED points
- Cushions: EVA — high-density, moisture-resistant
- Cover: Insulating cover included
- Steps: Entry steps included
- Certifications: CE, SAA, RoHS, ISO 9001
Physical & Weight
- Width (all models): 2,400 mm
- Depth (all models): 1,500 mm
- Length options: 4.0m / 5.0m / 5.95m
- Shipping crate: 810 × 255 × 165 cm
- Gross shipping weight: 2,040 kg
- Max water volume: 10,800 litres
- Operational weight (5.95m): Approximately 12,840 kg
- Capacity: Up to 6 persons
Weight, Foundation
& Site Assessment
This swim spa is a civil engineering installation. The filled operating weight of the 5.95m configuration is approximately 12,840 kg — not including occupants. A reinforced concrete foundation of at least 15cm is the standard requirement.
Load specifications are provided for your structural engineer or architect during the order process.
- Foundation: Reinforced concrete, 15cm minimum
- 4.0m models: 6,800 or 8,600 litres
- 5.0m model: 8,600 litres
- 5.95m model: 10,800 litres — approx. 12,840 kg filled
- Shipping crate: 2,040 kg gross — crane access required
What You Receive
Product
- Complete swim spa in chosen shell colour
- 4.75mm Aristech® reinforced acrylic shell
- Full stainless steel chassis
- Balboa control system with thermostat
- 3 to 5 × 3HP pumps depending on model
- River nozzle flow system with manual controls
- Massage jet system — layout per model
- Integrated ozone sanitation system
- Floor-level sediment management nozzles
- Bluetooth audio with waterproof speakers
- 34 internal LED lighting points
- EVA seating cushions
- WPC exterior cabinet in chosen finish
- Insulating cover
- Entry steps
Service
- Site assessment before configuration is confirmed
- Structural load data for your engineer or architect
- Written quotation with all confirmed specifications
- Crane logistics coordinated for delivery
- On-location installation by certified local partners
- Electrical connection and full operational verification
- Water treatment guidance and maintenance schedule
- Post-installation support via OxiusPro

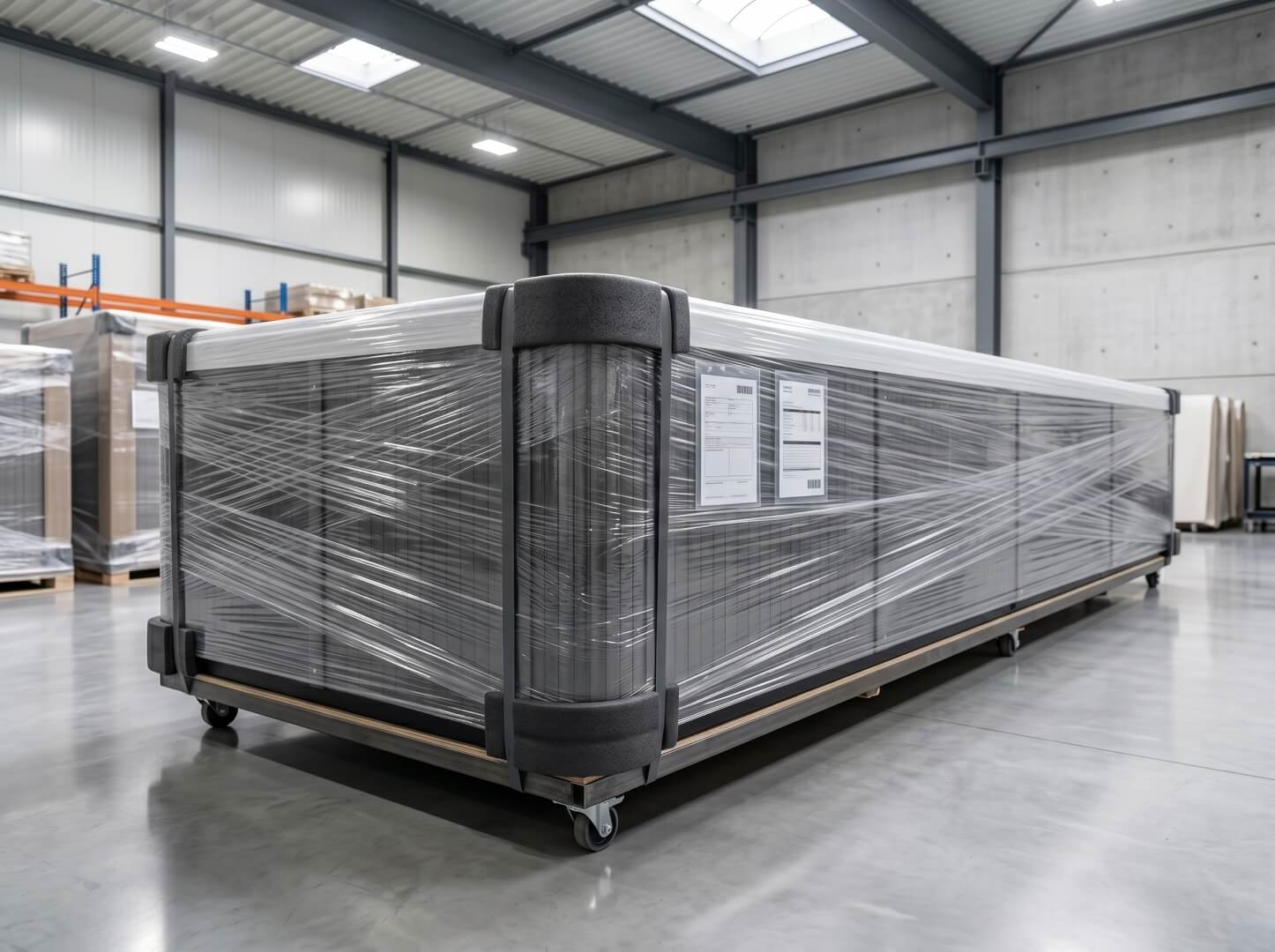

Protected Worldwide
Delivery
The Tide is shipped in a reinforced industrial export crate engineered for the scale and weight of a full swim spa. Crane logistics are coordinated as part of every delivery.
- Shipping crate: 810 × 255 × 165 cm
- Gross weight: 2,040 kg
- Shipping: DDP Worldwide
- Crane access: Required and coordinated
- Installation: On-location by certified partners
Production
Certifications
The Tide is manufactured in a production facility with more than 20 years of experience in the swim spa sector. These are factory-level certifications, not OxiusPro claims.
Learn more about ISO 9001 Quality Management standards.
- CE — European Conformity
- SAA — Australian electrical safety
- RoHS — Restricted hazardous substances
- ISO 9001 — Quality Management System
Warranty &
Support
Factory Coverage
- Structural: Factory states more than 5 years on shell
- Electronics: 1-year (12-month) Balboa warranty
- After-Sales: Online support, free parts during warranty period
- Owner Responsibility: Post-warranty maintenance and repair costs are the responsibility of the owner
Exact warranty terms confirmed in your written quotation.
OxiusPro Support
- Single point of contact for all warranty claims
- Extended service plan options available
- Post-installation operational support
- Water chemistry guidance and maintenance schedule
Project-Specific
Confirmations
Due to the scale and weight of this swim spa, the order process is more extensive than for smaller units. Site assessment is a required step before order. Nothing proceeds to production until the site is confirmed as structurally viable.
Confirmed Per Project
- Model selection (S / M / L)
- Shell colour and cabinet finish
- Filled operating weight for structural assessment
- Foundation specification for your site
- Crane access requirements
- Electrical circuit specification (32A / 3-phase)
- Water supply and drainage routing
- Exact warranty terms per component
- Full project timeline
- Fixed all-inclusive price
Site
Requirements
Foundation
Reinforced concrete foundation — minimum 15cm thickness, sized to the unit footprint. Load specifications provided for your contractor during the order process.
Water Supply & Drainage
A dedicated water supply and appropriately sized drainage are required. A full water change on the 5.95m model involves removing 10,800 litres.
Electrical
- Recommended: 32A / 3-phase dedicated circuit
- Standard 15A insufficient for full simultaneous use
- RCD protection required
- Licensed electrician required
- Full specifications provided in advance
Crane Access
Shipping crate weighs 2,040 kg gross. A crane is required for placement. Vehicle access for crane truck must be available within practical distance of the installation point.
Frequently
Asked
-
What makes this swim spa different from a standard model?
Three things: the 1.5m depth, the 4.75mm reinforced acrylic shell and the full stainless steel chassis. Most comparable models are 1.2m deep — insufficient for a full swimming stroke.
-
Can The Tide be placed on an elevated terrace?
In principle, yes — but the filled operating weight of the largest model is approximately 12,840 kg. A structural engineer's written confirmation of bearing capacity is required.
-
Why do you recommend 32A instead of 15A?
With up to 5 pumps of 3HP each, 15A is insufficient for full simultaneous operation. A 32A / 3-phase dedicated circuit ensures stable performance.
-
Which configuration is right for me?
The 4m models suit limited spaces or buyers prioritising the massage section. The 5m and 5.95m models provide more useful swimming distance. The right configuration is confirmed during the order process.
-
What warranty is included?
The factory states more than 5 years on the shell structure and 1 year on electronics. Post-warranty maintenance, servicing and repair costs are the responsibility of the owner.
-
Are the listed prices inclusive of everything?
No. Listed prices are for the base hardware configuration. Global DDP delivery, duties, customs, crane logistics and professional installation are calculated per project and added to your pro-forma invoice.
From Order
to Installation
Order & Site Assessment
Submit your order specification. We assess structural viability, advise on the right model and send a pro-forma invoice within 2 business days.
Production & Delivery
Your swim spa is produced to specification and delivered DDP. All customs, duties and freight included. Crane logistics coordinated as part of delivery.
Installation & Handover
Local installation partners place and connect The Tide, coordinated by OxiusPro. Full operational status verified before handover.
Order The Tide
Submit your order specification and receive a pro-forma invoice within 2 business days. Production begins after written approval and 50% deposit.
Starting from USD 48,500
Place OrderOr request product information before ordering.
