Cabin Sauna
Solid 38 mm Canadian Red Cedar. Straight-walled cabin geometry with full interior headroom across the entire structure. Specified for permanent outdoor installation.
4–6 or 6–8 person configurations · Electric or wood-fired heating
The Summit
Defined
The Summit is a fixed outdoor cabin sauna designed as a permanent architectural addition to private residences, hospitality settings and landscape environments. It is constructed in solid 38 mm Canadian Red Cedar with straight vertical walls and rounded corner detailing.
The straight-walled cabin geometry maintains full interior headroom across the entire footprint, not only at the centre line. This results in more usable bench space and a more defined architectural presence than a barrel-form structure.
A cabin structure defined by continuous interior volume and permanent outdoor placement.
Materials, configuration, heating system and delivery scope are confirmed in writing before manufacture begins.
Canadian Red Cedar, when correctly maintained, is estimated by the manufacturer to remain structurally sound for 15 to 20 years in outdoor conditions. Care guidance is provided with every unit.

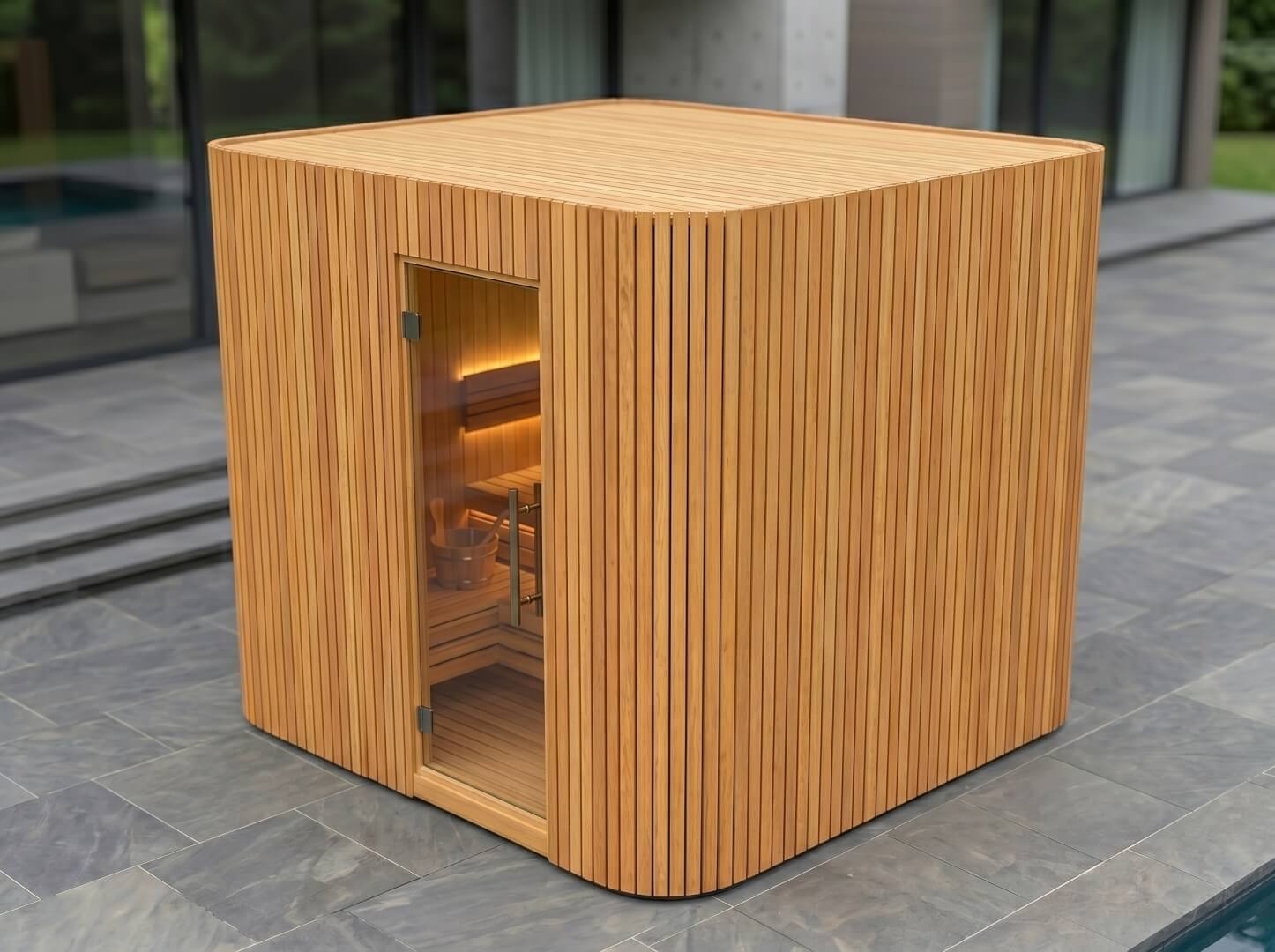

Cabin Structure
The Summit uses a cube-format cabin geometry with straight cedar walls, providing a controlled interior environment with consistent headroom and bench usability across all seating positions.
- Solid 38 mm Canadian Red Cedar walls
- Rounded corner detailing
- Bitumen waterproof roof system
- Wooden base platform included
- Factory pre-cut interlocking components

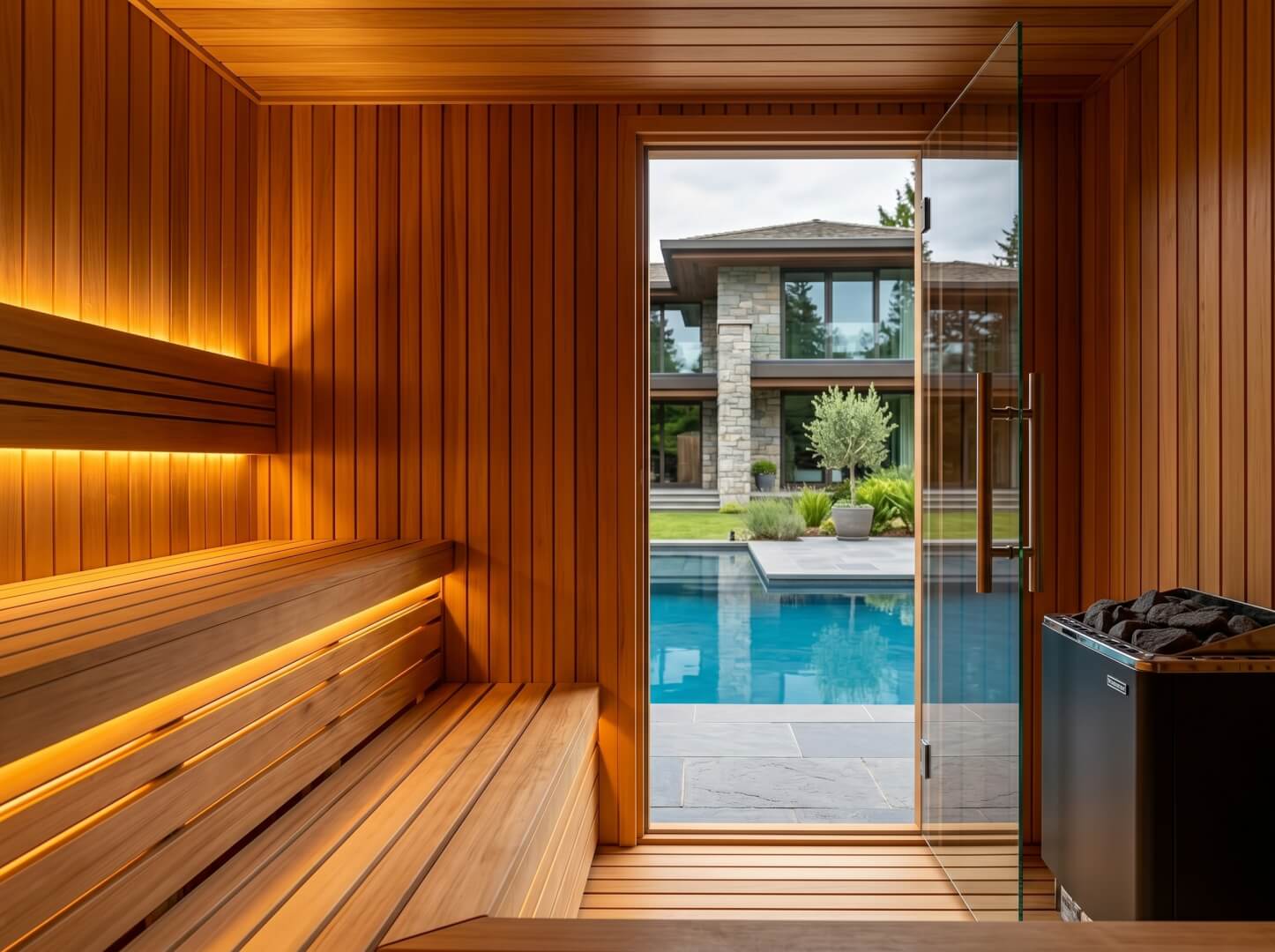

Cedar Wall and
Glass Door
The entrance features an 8 mm tempered safety glass door — available in clear or tinted finish — allowing natural light into the interior while maintaining thermal performance.
- 8 mm tempered safety glass
- Clear or tinted finish
- Solid wood ergonomic handle
- Thermal-rated assembly

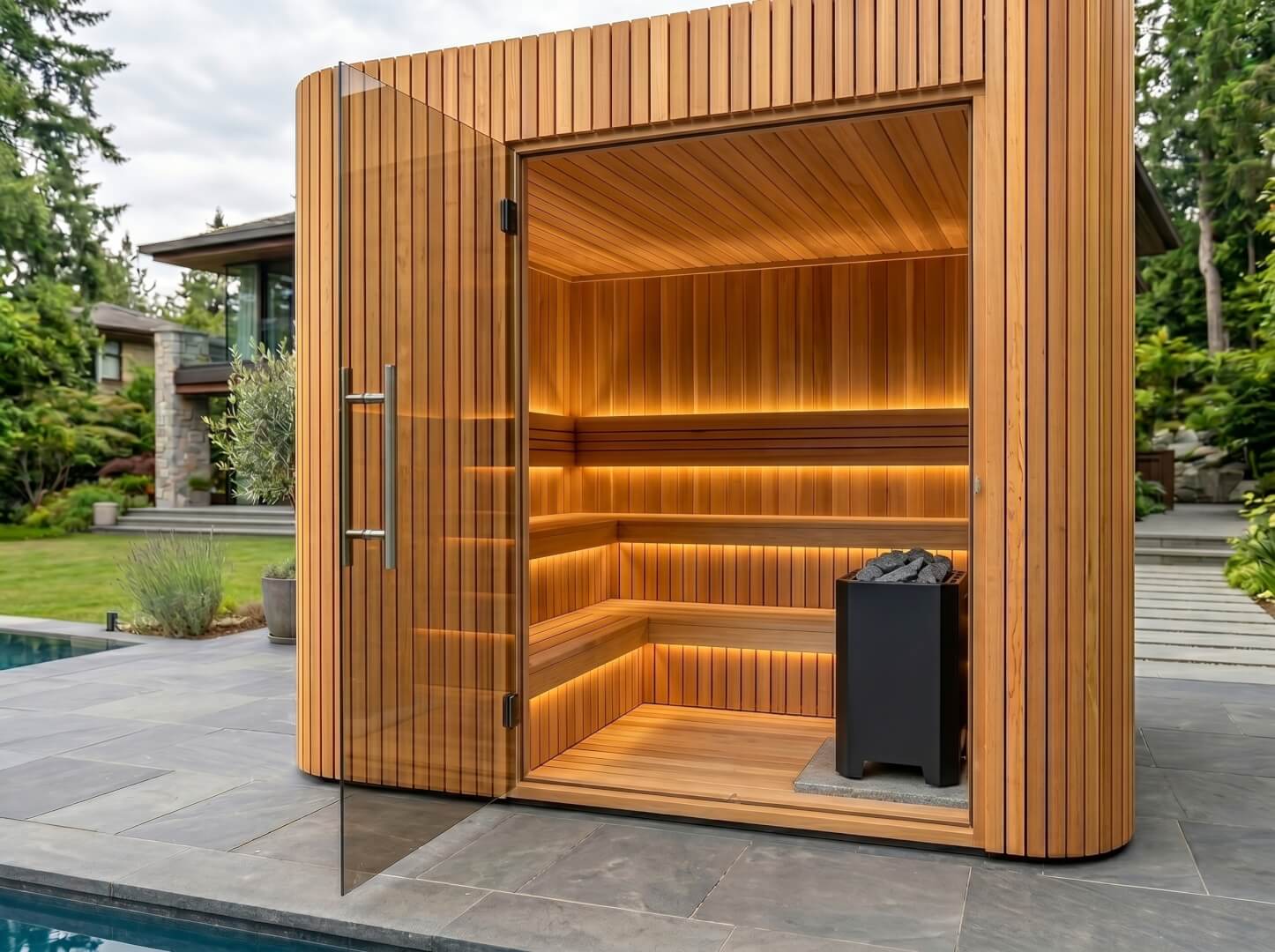

Interior
Equipment
The straight-walled interior features two-level cedar benches and integrated lighting. Each unit includes the essential components required for traditional sauna operation.
- Two-level cedar bench layout
- Sauna heater and volcanic stones
- Wooden bucket and ladle
- Sand timer and hygrothermograph
- Wall-mounted ambient lighting
Canadian Red Cedar
Specification Basis
Dimensional Stability
Low volumetric movement reduces warping and joint separation under outdoor conditions.
Natural Resistance
Thujaplicin content provides inherent resistance to decay and moisture absorption without chemical treatment.
Thermal Comfort
Low surface heat conductivity maintains usable internal surface temperatures at full operating range.
Defined Variants
- 1800 × 1800 × 1800 mm — 4–6 person residential scale
- 1800 × 2400 × 1800 mm — 6–8 person extended residential scale
Heating and Electrical
- Heater options: 6 kW to 9 kW electric, or wood-fired
- Operating range: up to 90°C
- Control: Computer control panel
- Voltage: 220–240 V or 380 V, region dependent
Included in
Specification
Structural Elements
- Complete outdoor cabin sauna in Canadian Red Cedar
- 8 mm tempered glass door — clear or tinted
- Bitumen roof shingles
- Wooden base platform
Operating Components
- Sauna heater — manufacturer confirmed in specification
- Volcanic stones
- Wall-mounted ambient lighting
Standard Accessories
- Wooden bucket and ladle
- Sand timer
- Hygrothermograph
Documentation and Coordination
- Written specification prior to production approval
- Pro forma invoice with confirmed scope and pricing
- Delivery coordination based on site access
- On-location assembly by coordinated installation partners
- Operational verification after assembly
- Care and maintenance guidance
Site Requirements
Surface and Foundation
The Summit requires a level, load-bearing surface. A concrete pad, reinforced paver base or structural deck is appropriate. A wooden base platform is included. Required bearing capacity is confirmed per configuration for verification by the contractor or project architect.
Clearance
Adequate clearance on all sides is specified for ventilation and maintenance access. Exact spacing is provided per site layout and configuration during specification.
Electrical
Electric configurations require a dedicated, hardwired circuit.
- Voltage: 220–240 V or 380 V, depending on heater and region
- Installation by a licensed electrician is required
- Electrical specifications provided in advance
Delivery Access
The unit arrives as a crated shipment — approximately 650 to 750 kg gross weight. Vehicle access to within a practical distance of the installation point is required. Crane or lifting equipment is coordinated where needed. Access is assessed during the specification stage.
Global Logistics

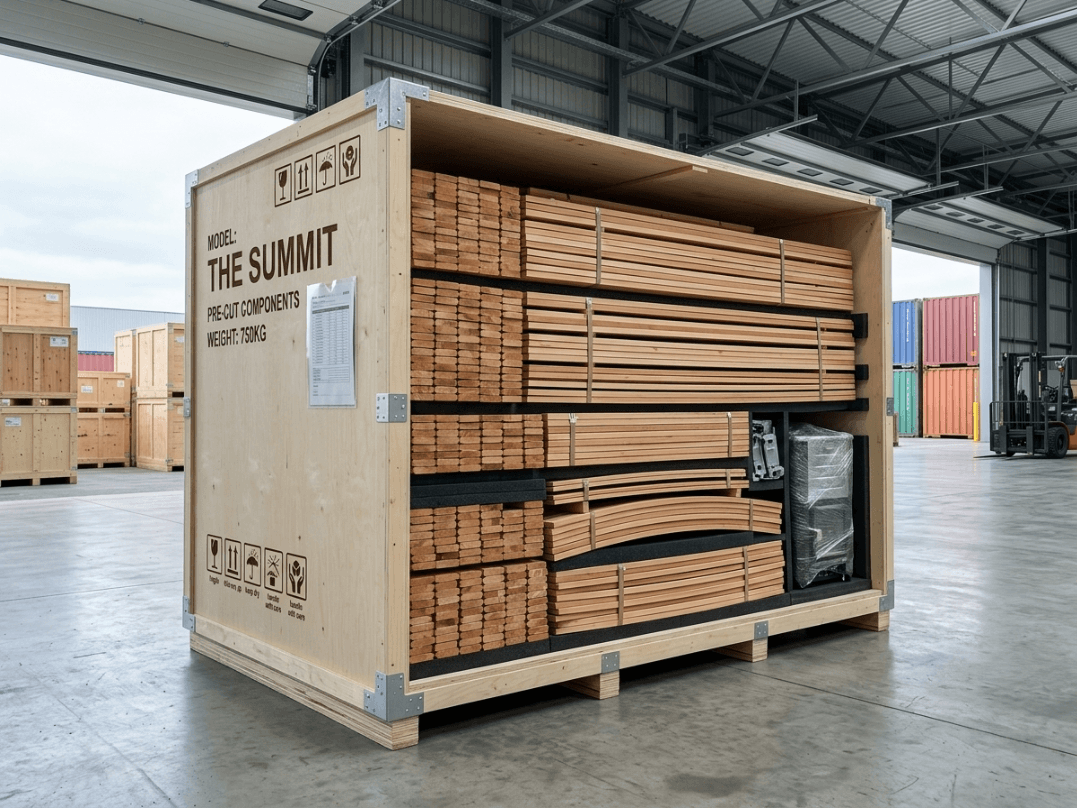

The Summit is delivered in a reinforced industrial export crate. Delivery terms and logistics parameters are confirmed per destination prior to production approval.
- Packaging: Heavy-duty timber export crate
- Crate dimensions: 245 × 200 × 85 cm
- Gross weight: 650–750 kg depending on configuration
- Delivery: DDP worldwide
- Assembly: Coordinated installation partners
Production Certifications
The Summit is manufactured in a production facility holding the following independently audited certifications. These are factory-level certifications, not OxiusPro brand claims.
- ISO 9001 — Quality Management System
- CE — European Conformity
- ETL — North American electrical safety
- SASO — Saudi Standards Organization
- RoHS — Restriction of hazardous substances
Manufacturer Coverage
- Structure: 12-month manufacturer warranty
- Electrical components: 12-month manufacturer warranty
Exact warranty terms are stated in the written specification. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
Extended Coverage
- Extended warranty options available on request
- Post-installation care guidance provided
Confirmed
Per Project
Certain specifications depend on configuration, destination and site conditions. These are confirmed in writing before production approval.
- Heater manufacturer and model
- Glass door finish (clear or tinted)
- Electrical circuit requirements per region
- Installed weight for structural assessment
- Full project timeline including delivery
- Confirmed pricing on pro forma invoice
- Extended warranty options
Confirmed in Writing.
Approved Before Manufacture.
Select and Specify
Model, configuration and site details are submitted.
Commercial Documentation
A pro forma invoice is issued with full specification, confirmed pricing and delivery scope.
Approval for Manufacture
Production begins after written approval and deposit confirmation.
Delivery Coordination
Logistics and delivery are confirmed per destination and project scope.
Before You Proceed
- What distinguishes The Summit from The Horizon?
The Summit uses a straight-walled cabin geometry with full interior headroom across all seating positions. The Horizon uses a barrel geometry with a panoramic rear window. Both use the same Canadian Red Cedar specification and the same installation process.
- Is this a pre-assembled structure?
No. The Summit arrives with all components pre-cut and interlocking. Assembly is performed on site by coordinated installation partners.
- Does the cedar require chemical treatment?
No. Canadian Red Cedar is naturally resistant to moisture due to its thujaplicin content. Over time, untreated cedar develops a silver-grey patina — cosmetic, not structural.
- Is the glass door available in different finishes?
The 8 mm tempered safety glass door is available in clear or tinted finish. Preference is confirmed during specification.
- Can configurations be adjusted?
Certain dimensions, finishes and heater specifications may be adjusted within the limits of the selected model. Any approved variation is stated on the final specification and invoice.
- What warranty applies?
A 12-month manufacturer warranty applies to structure and electronics. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
- Are listed prices fully inclusive?
Prices apply to base configurations. Delivery, duties, customs clearance, site placement and installation are confirmed separately per destination and project scope.
Request Your Pro Forma Invoice
Submit your configuration and destination details. Specification, pricing and delivery scope are confirmed in writing prior to production.
From USD 14,800
Submit EnquiryEvery order begins with written specification. No manufacture proceeds without your approval.
