Cold Plunge
Aristech® acrylic shell cold plunge with integrated chiller and heating system. 3°C to 42°C operating range. Specified for permanent outdoor installation.
650 L capacity · Self-contained cold plunge installation format
The Basin Outdoor
Cold Plunge
The Basin is designed as a permanent outdoor cold plunge installation for private residences, hospitality settings and wellness environments. Its dual-temperature system operates across a full range from 3°C to 42°C, functioning as cold plunge, warm immersion or any temperature point between.
The cold plunge unit arrives complete and operational. Unlike the sauna and spa models in the collection, The Basin requires no on-site assembly and no hardwired electrical connection.
A self-contained cold plunge defined by integrated temperature control, Aristech® acrylic construction and permanent outdoor placement.
Materials, configuration and delivery scope are confirmed in writing before manufacture begins.
The cold plunge exterior cabinet is industrial-grade powder-coated steel. The internal frame is stainless steel. The base is corrosion-resistant ABS with an anti-slip pad.
Cold Plunge Structure
The Basin cold plunge is constructed around an Aristech® acrylic shell with a stainless steel internal frame and 30 mm thermal insulation barrier. The powder-coated steel cabinet provides a durable exterior enclosure.
- Aristech® acrylic shell — colour-stable, non-porous
- Stainless steel structural frame
- 30 mm spray-applied foam insulation
- Industrial-grade powder-coated steel cabinet
- Corrosion-resistant ABS base with anti-slip pad
Cold Plunge
Digital System

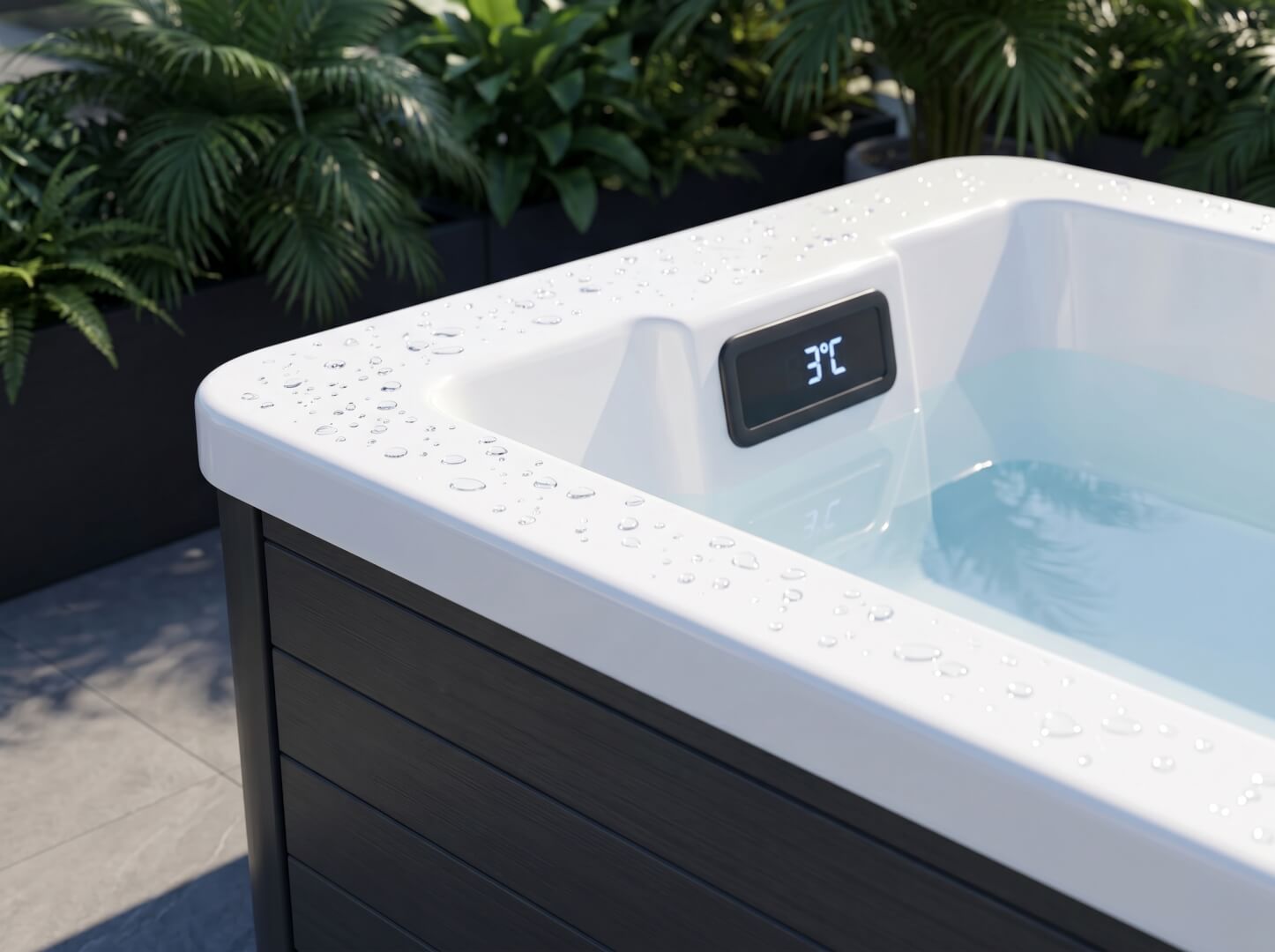

The integrated chiller and heating unit maintains the target cold plunge temperature continuously without ice. Real-time feedback is provided via a digital LCD panel integrated into the shell.
- Temperature range: 3°C to 42°C, model dependent
- Digital LCD panel with real-time display
- PM-062022 chiller unit
- 870 W power consumption
Cold Plunge
Interior Equipment

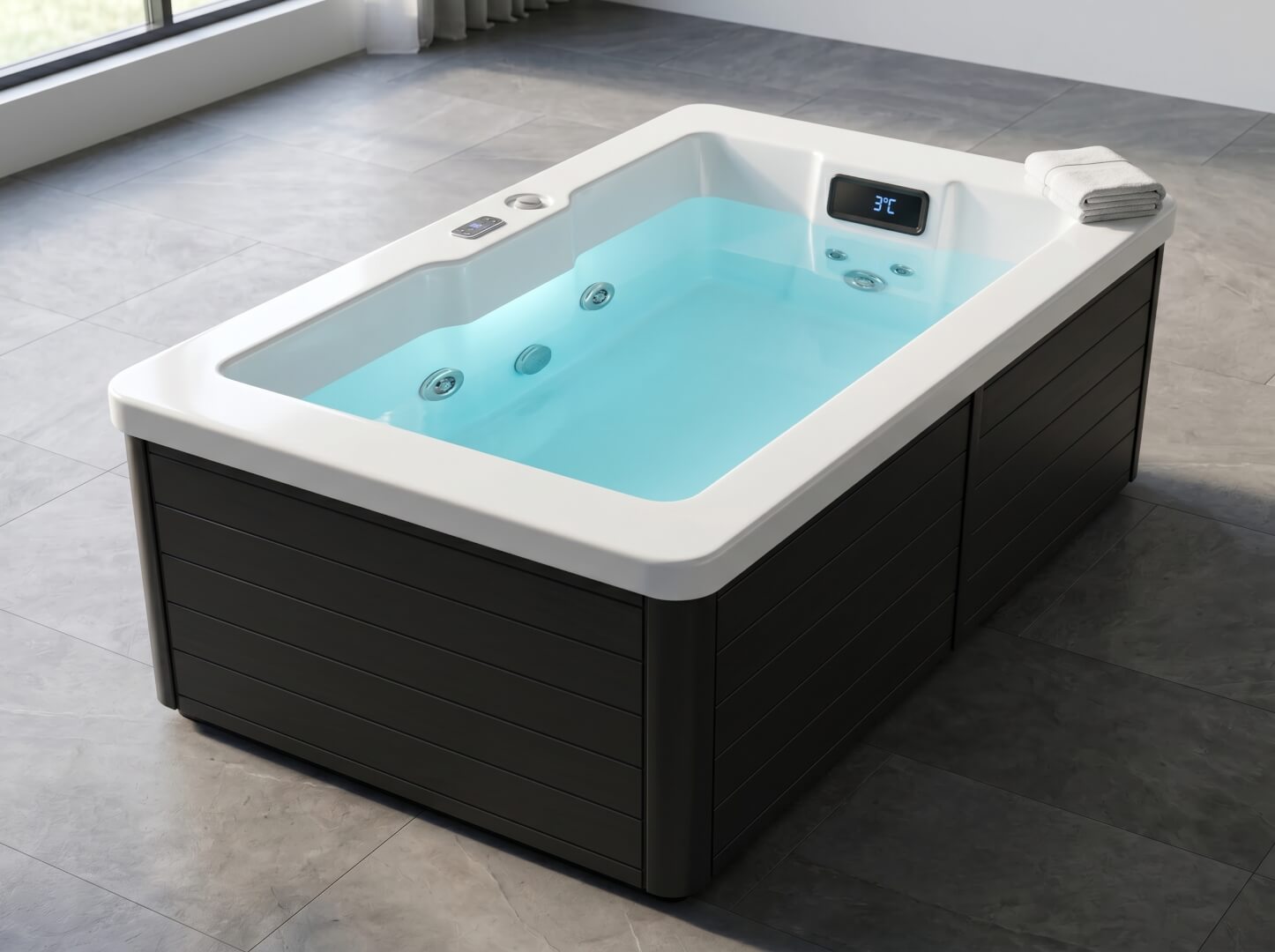

The cold plunge interior includes dual stainless steel massage jets, integrated ozone sanitation and LED underwater lighting. Water clarity is maintained by a 0.35 HP circulation pump with integrated filtration.
- 2 stainless steel massage jets
- Integrated ozone sanitation system
- Circulation pump — 0.35 HP with filtration
- LED underwater lighting
- Anti-slip base pad
- Central floor drain
3°C to 42°C
Dual-Temperature Operation
Cold Configuration
Set to 3°C–15°C, The Basin operates as a cold plunge. The chiller unit maintains the target temperature continuously without ice. The 30 mm insulation barrier minimises temperature drift between sessions.
Warm Configuration
Set to 36°C–42°C, The Basin operates as a compact warm immersion tub. The same unit, the same water system, the same installation — a different temperature setting.
Cold Plunge Technical Specification
- Dimensions: 2130 × 1060 × 780 mm
- Water capacity: 650 L
- Empty weight: 185 kg
- Filled operating weight: approximately 835 kg
- Temperature range: 3°C to 42°C, model dependent
- Shell colour: Dark gray (standard)
Electrical
- Connection: Standard plug — self-contained cold plunge installation
- Power consumption: 870 W
- Chiller unit: PM-062022
Included in
Specification
Structural Elements
- Complete cold plunge unit — delivered operational
- Aristech® acrylic shell
- Stainless steel internal frame
- Powder-coated steel cabinet
- Insulating cover
Operating Components
- PM-062022 chiller and heating unit
- Circulation pump — 0.35 HP with filtration
- Integrated ozone sanitation
- 2 stainless steel massage jets
- Digital LCD control panel
- LED underwater lighting
Standard Accessories
- Anti-slip base pad
- Power cable for standard connection
Documentation and Coordination
- Written specification prior to production approval
- Pro forma invoice with confirmed scope and pricing
- Delivery coordination based on site access
- Placement coordination on delivery
- Operational verification
- Water treatment and maintenance guidance
Cold Plunge Site Requirements
Surface and Foundation
The Basin cold plunge requires a level, load-bearing surface. Filled operating weight is approximately 835 kg. This must be verified against the bearing capacity of the installation surface, particularly for terraces and elevated decks.
Water Supply and Drainage
A water supply for filling and a drainage route for water changes are required. Water changes are recommended every 2 to 4 weeks depending on cold plunge usage frequency.
Electrical
The cold plunge is self-contained. It connects to a standard power outlet and does not require a dedicated hardwired circuit.
- Power consumption: 870 W
- Connection: Standard plug — cable included
- Place within cable reach of a power outlet
Delivery Access
The cold plunge arrives as a complete unit — no assembly required. Empty weight is 185 kg. Vehicle access to within a practical distance of the installation point is required. Access is assessed during the specification stage.
Global Logistics

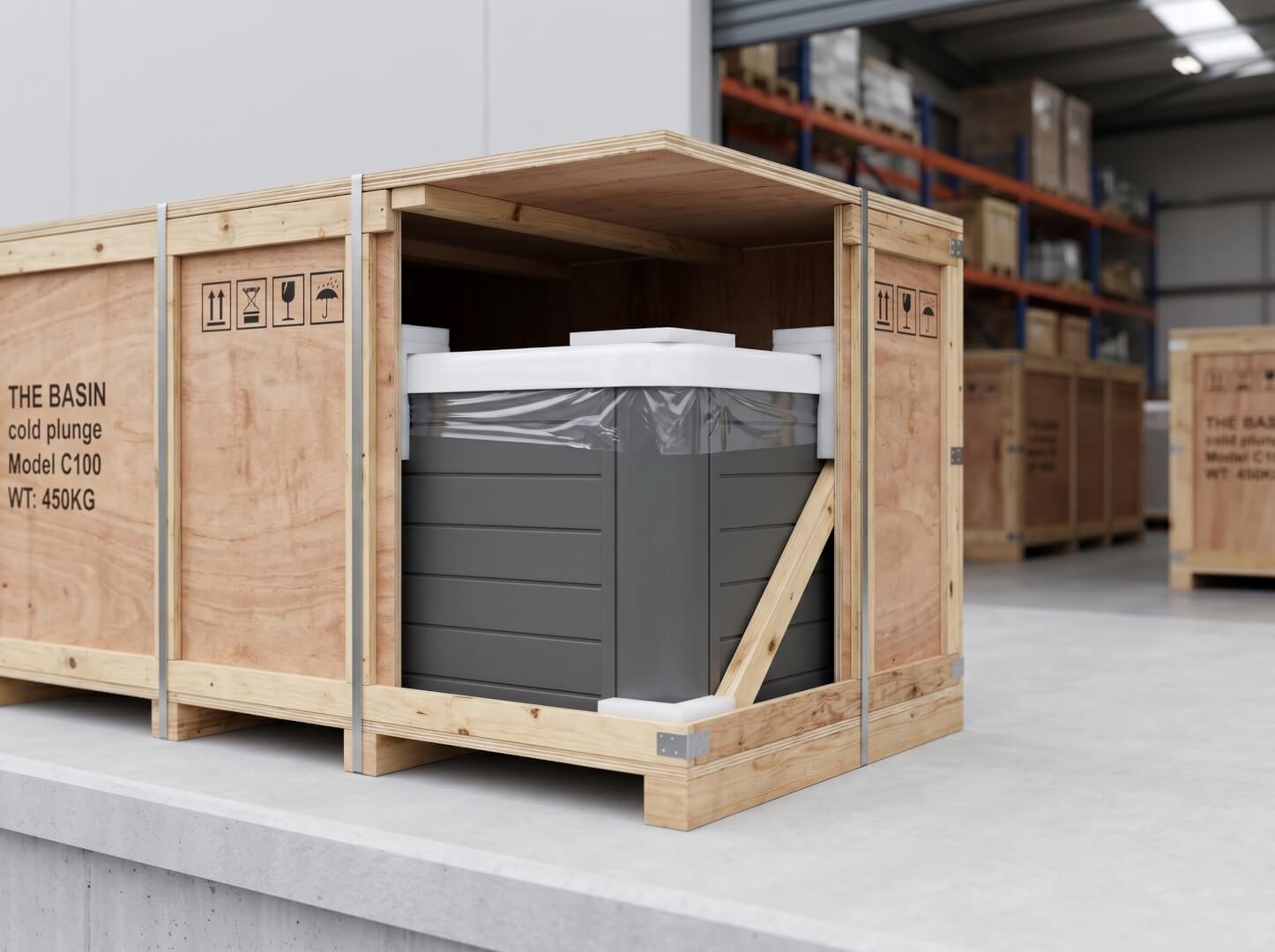

The Basin is shipped in a reinforced industrial export crate. Delivery terms and logistics parameters are confirmed per destination prior to production approval.
- Dimensions: 2130 × 1060 × 780 mm
- Empty weight: 185 kg
- Filled weight: approximately 835 kg
- Delivery: DDP worldwide
- Placement: Coordinated on delivery
Production Certifications
The Basin is manufactured in a production facility holding the following independently audited certifications. These are factory-level certifications, not OxiusPro brand claims.
- CE — European Conformity
- SAA — Australian electrical safety
- RoHS — Restriction of hazardous substances
- ISO 9001 — Quality Management System
Manufacturer Coverage
- Structure: 12-month manufacturer warranty
- Electronics: 12-month manufacturer warranty
Exact warranty terms are stated in the written specification. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
Extended Coverage
- Extended warranty options available on request
- Post-delivery care guidance provided
- Water treatment and maintenance schedule included
Confirmed
Per Project
Certain specifications depend on destination and site conditions. These are confirmed in writing before production approval.
- Structural load data for installation surface
- Delivery access requirements
- Full project timeline including delivery
- Confirmed pricing on pro forma invoice
- Extended warranty options
Confirmed in Writing.
Approved Before Manufacture.
Select and Specify
Configuration and site details are submitted.
Commercial Documentation
A pro forma invoice is issued with full specification, confirmed pricing and delivery scope.
Approval for Manufacture
Production begins after written approval and deposit confirmation.
Delivery and Placement
The Basin is delivered as a complete unit and placed on site. Operational verification is performed before handover.
Before You Proceed
-
Does this cold plunge require ice?
No. The integrated chiller unit cools the water to the target temperature and maintains it continuously. No ice is required at any point.
-
What is the lowest operating temperature?
The cold plunge is rated to a minimum of 3°C. Actual performance depends on ambient temperature and duration of use.
-
Can it also be used as a warm immersion tub?
Yes. The same unit heats water to a maximum of 42°C. Temperature is adjustable via the digital LCD panel.
-
Can the cold plunge be installed on a terrace?
Subject to structural verification. Filled operating weight is approximately 835 kg. Load data is provided for assessment by the contractor or project architect.
-
How often does the water need changing?
Every 2 to 4 weeks depending on usage frequency and water treatment maintenance.
-
Is assembly required?
No. The Basin arrives as a complete, operational unit. No on-site assembly is required.
-
What warranty applies?
A 12-month manufacturer warranty applies to structure and electronics. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
-
Are listed prices fully inclusive?
Prices apply to base configurations. Delivery, duties, customs clearance, site placement and installation are confirmed separately per destination and project scope.
Request Your Pro Forma Invoice
Submit your destination and site details. Cold plunge specification, pricing and delivery scope are confirmed in writing prior to production.
From USD 11,900
Submit EnquiryEvery order begins with written specification. No manufacture proceeds without your approval.
