Panoramic Barrel Sauna
Solid 38 mm Canadian Red Cedar. Integrated panoramic rear window. Barrel geometry specified for permanent outdoor installation.
2, 4 or 6-person configurations · Electric or wood-fired heating
The Horizon
Defined
The Horizon is a fixed outdoor sauna structure designed as a permanent architectural addition to private residences, hospitality settings and landscape environments. It is constructed in solid Canadian Red Cedar with an integrated panoramic rear glazing system.
The cylindrical barrel geometry maintains a compact footprint while opening the rear elevation to the surrounding landscape. This gives the structure a clear architectural profile without increasing its site demand.
A barrel structure defined by panoramic rear glazing and permanent outdoor placement.
Materials, configuration, heating system and delivery scope are confirmed in writing before manufacture begins.
Canadian Red Cedar, when correctly maintained, is estimated by the manufacturer to remain structurally sound for 15 to 20 years in outdoor conditions. Care guidance is provided with every unit.

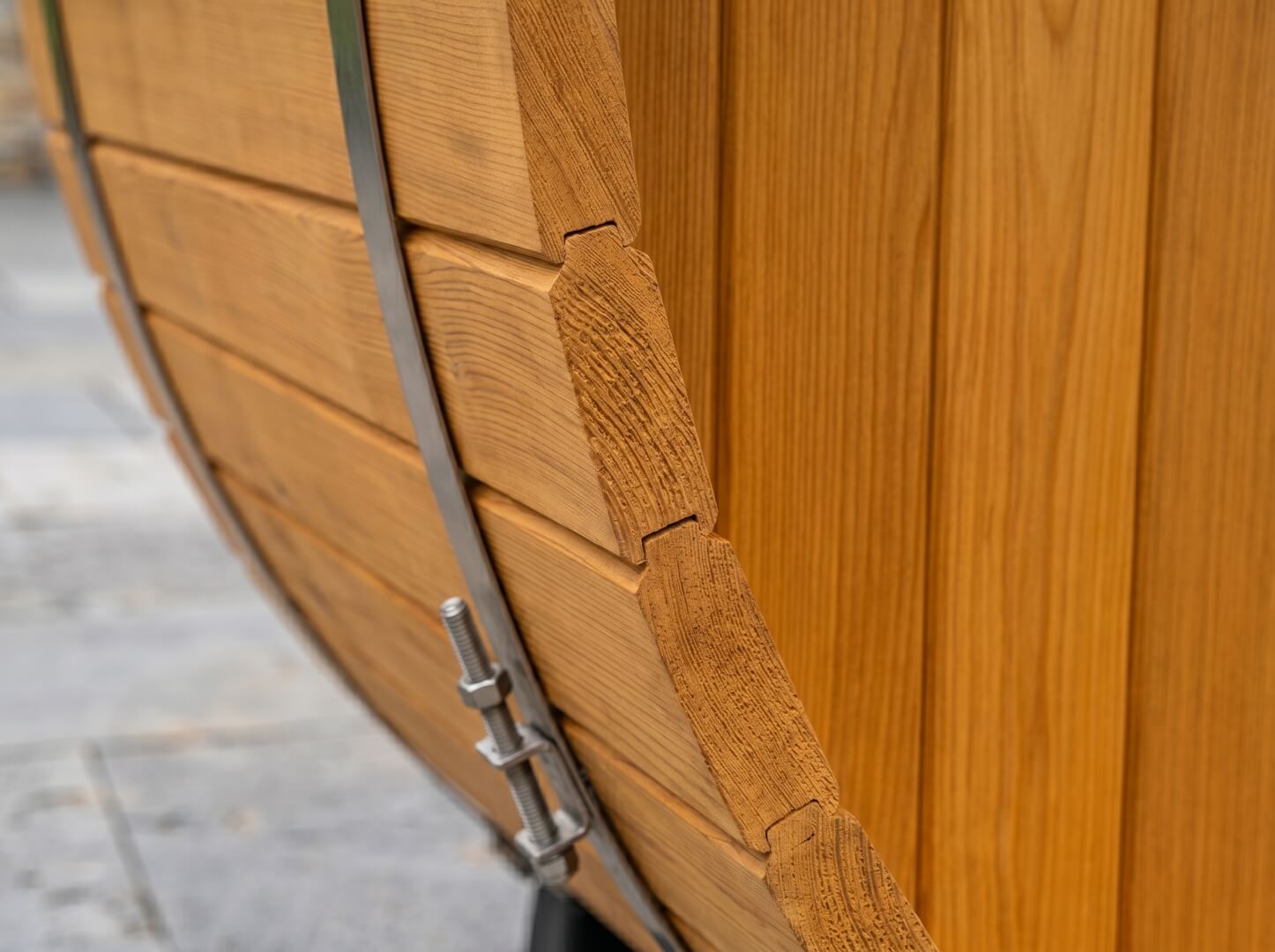

Barrel Structure
The cylindrical barrel geometry distributes structural tension evenly across the cedar staves, reducing stress concentration and supporting long-term dimensional stability in outdoor conditions.
- Solid 38 mm Canadian Red Cedar staves
- 304 stainless steel tension bands
- Bitumen waterproof roof system
- Factory pre-cut interlocking profile system

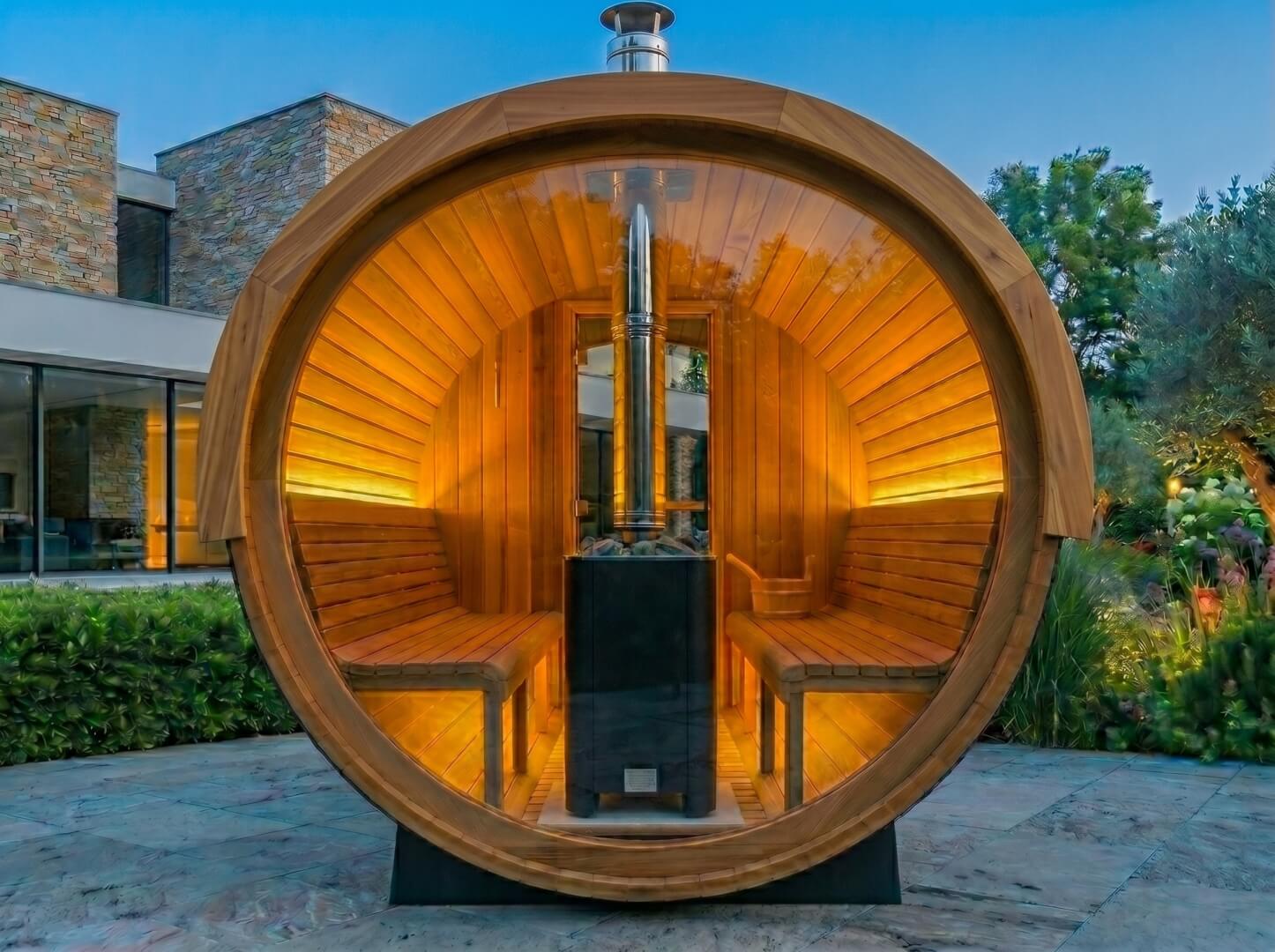

Panoramic Rear Window
The rear wall integrates a large-format tempered glass system, creating a controlled visual connection between the interior thermal environment and the surrounding landscape.
- 8 mm tempered safety glass
- Thermal-differential rated assembly
- Structural integration into barrel geometry
- Frameless external visual continuity

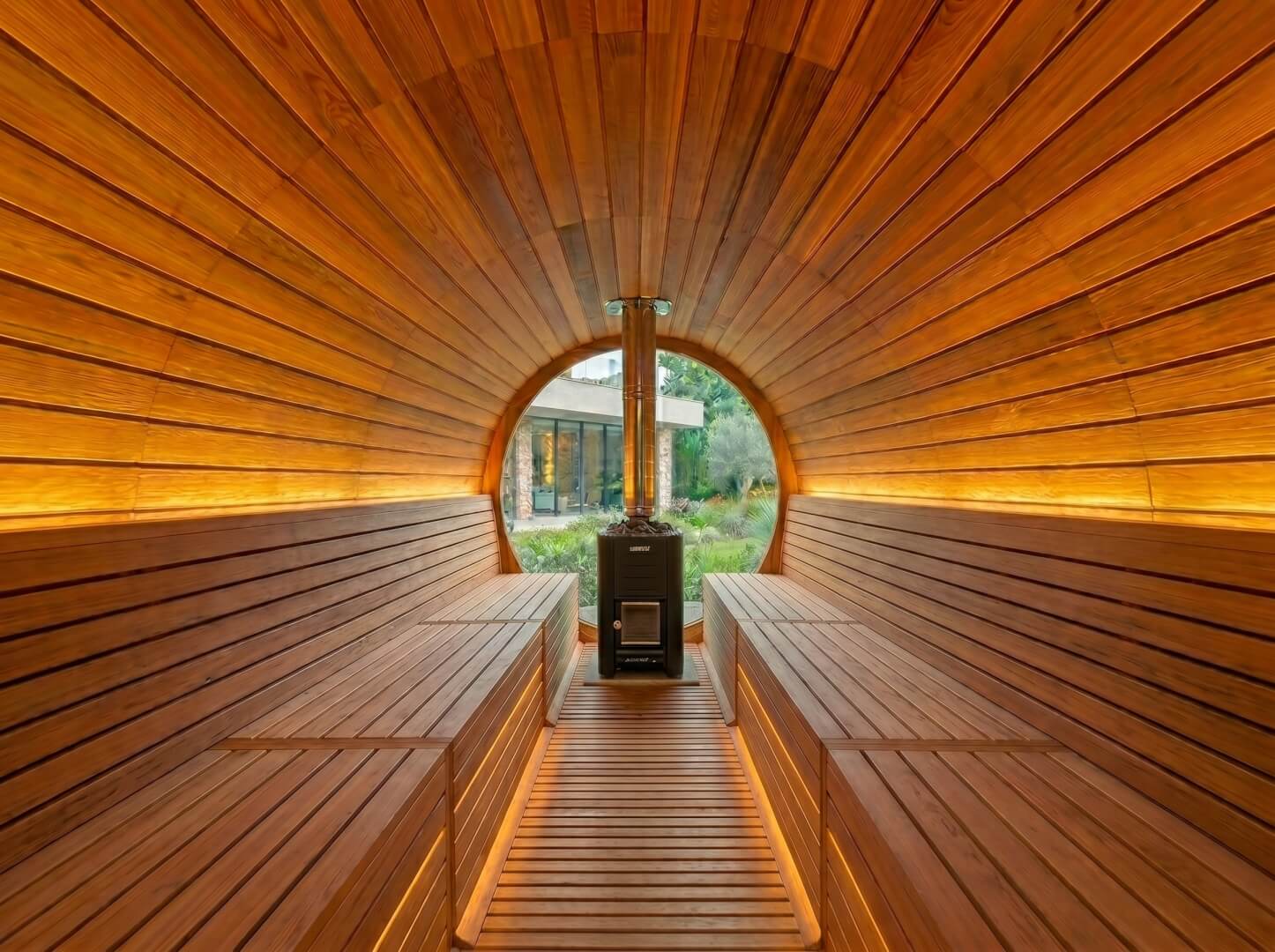

Interior
Equipment
The curved cedar interior features two-level benches and integrated LED lighting. Each unit includes the essential components required for traditional sauna operation.
- Sauna heater and volcanic stones
- Wooden bucket and ladle
- Sand timer and hygrothermograph
- Internal LED ambient lighting
Canadian Red Cedar
Specification Basis
Dimensional Stability
Low volumetric movement reduces warping and joint separation under outdoor conditions.
Natural Resistance
Thujaplicin content provides inherent resistance to decay and moisture absorption.
Thermal Comfort
Low surface heat conductivity maintains usable internal surface temperatures at full operating range.
Defined Variants
- 1800 × 1500 mm — 2-person compact residential scale
- 1800 × 1800 mm — 4-person residential scale
- 1800 × 2400 mm — 6-person extended residential scale
Heating and Electrical
- Heater options: 6 kW electric, 9 kW electric, or wood-fired
- Operating range: 80–90°C
- Heat-up time: 30–60 minutes, model dependent
- Voltage: 220–240 V or 380 V, region dependent
- Certification: CE, ETL, SASO, RoHS
Included in
Specification
Structural Elements
- Complete outdoor barrel sauna in Canadian Red Cedar
- Panoramic rear window
- Bitumen roof shingles
- 304 stainless steel tension bands
Operating Components
- Sauna heater — manufacturer confirmed in specification
- Volcanic stones
- Internal LED ambient lighting
Standard Accessories
- Wooden bucket and ladle
- Sand timer
- Hygrothermograph
Documentation and Coordination
- Written specification prior to production approval
- Pro forma invoice with confirmed scope and pricing
- Delivery coordination based on site access
- On-location assembly by coordinated installation partners
- Operational verification after assembly
- Care and maintenance guidance
Site Requirements
Surface and Foundation
The Horizon requires a level, load-bearing surface. A concrete pad, reinforced paver base or structural deck is appropriate. Required bearing capacity is confirmed per configuration for verification by the contractor or project architect.
Clearance
Adequate clearance on all sides is specified for ventilation and maintenance access. Exact spacing is provided per site layout and configuration during specification.
Electrical
Electric configurations require a dedicated, hardwired circuit. This is not a plug-and-play appliance.
- Voltage: 220–240 V or 380 V, depending on heater and region
- Installation by a licensed electrician is required
- Electrical specifications provided in advance
Delivery Access
The unit arrives as a crated shipment — 650 to 750 kg gross weight. Vehicle access to within a practical distance of the installation point is required. Access is assessed during the specification stage.

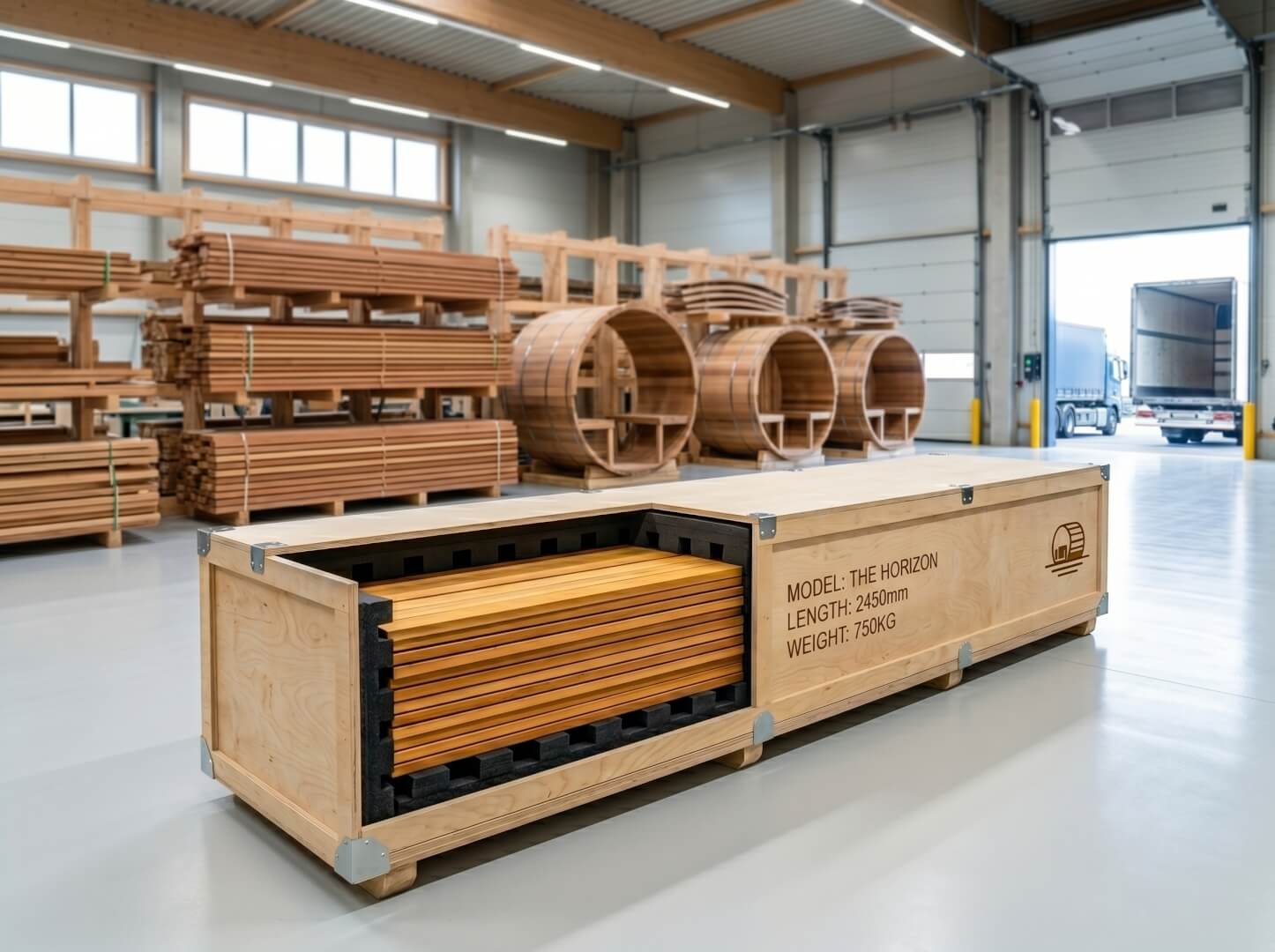

Global Logistics
The Horizon is delivered in a reinforced industrial export crate. Delivery terms and logistics parameters are confirmed per destination prior to production approval.
- Packaging: Heavy-duty timber export crate
- Gross weight: 650–750 kg depending on configuration
- Delivery: DDP worldwide
- Assembly: Coordinated installation partners
Production Certifications
The Horizon is manufactured in a production facility holding the following independently audited certifications. These are factory-level certifications, not OxiusPro brand claims.
- CE — European Conformity
- ETL — North American electrical safety
- SASO — Saudi Standards Organization
- RoHS — Restriction of hazardous substances
- LVD / EMC — Electrical safety and compatibility
Manufacturer Coverage
- Structure: 12-month manufacturer warranty
- Electrical components: 12-month manufacturer warranty
Exact warranty terms are stated in the written specification. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
Extended Coverage
- Extended warranty options available on request
- Post-installation care guidance provided
Confirmed
Per Project
Certain specifications depend on configuration, destination and site conditions. These are confirmed in writing before production approval.
- Heater manufacturer and model
- Panoramic window material specification
- Veranda and shingle scope
- Installed weight for structural assessment
- Electrical circuit requirements per region
- Full project timeline including delivery
- Confirmed pricing on pro forma invoice
- Extended warranty options
Confirmed in Writing.
Approved Before Manufacture.
Select and Specify
Model, configuration and site details are submitted.
Commercial Documentation
A pro forma invoice is issued with full specification, confirmed pricing and delivery scope.
Approval for Manufacture
Production begins after written approval and deposit confirmation.
Delivery Coordination
Logistics and delivery are confirmed per destination and project scope.
Before You Proceed
- Is this a pre-assembled structure?
No. The Horizon arrives with all components pre-cut and interlocking. Assembly is performed on site by coordinated installation partners.
- Does the cedar require chemical treatment?
No. Canadian Red Cedar is naturally resistant to moisture due to its thujaplicin content. Over time, untreated cedar develops a silver-grey patina — cosmetic, not structural.
- How long does it take to reach operating temperature?
Approximately 30 to 60 minutes to reach 80–90°C, depending on heater type, configuration and ambient temperature.
- Can it be placed on a rooftop or elevated terrace?
Subject to structural verification. Gross weight ranges from 650 to 750 kg. Installed weight is confirmed per configuration.
- What warranty applies?
A 12-month manufacturer warranty applies to structure and electronics. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
- Are listed prices fully inclusive?
Prices apply to base configurations. Delivery, duties, customs clearance, site placement and installation are confirmed separately per destination and project scope.
- Is a building permit required?
This depends on local authority requirements. Technical drawings and certification documents are available to support an application where required.
- Is the panoramic window rated for sauna temperatures?
The door uses 8 mm tempered safety glass rated for the thermal differential. Rear window material specification is confirmed per configuration.
Request Your Pro Forma Invoice
Submit your configuration and destination details. Specification, pricing and delivery scope are confirmed in writing prior to production.
From USD 12,500
Submit EnquiryEvery order begins with written specification. No manufacture proceeds without your approval.
