Outdoor Spa
Aristech® acrylic shell. Balboa Water Group® control system. 7-layer insulated construction. Specified for permanent outdoor installation.
2, 4 or 6-person configurations · 304 stainless steel frame
The Cove
Defined
The Cove is designed as a permanent outdoor spa installation for private residences, hospitality settings and estate environments. Its configuration combines identified shell, control system and insulated composite construction within a fixed external form.
The hydrotherapy jet system is configured to target specific body zones — shoulders, upper and lower back, quadriceps, calves and feet. Jet count and placement are defined per configuration.
A permanently installed outdoor spa defined by identified shell, control system and multi-layer insulated construction.
Materials, configuration, colour selection and delivery scope are confirmed in writing before manufacture begins.
The exterior cabinet is constructed in WPC (Wood-Plastic Composite), available in dark gray, light gray, teak and mahogany finish.
7-Layer Insulation System
The Cove uses a 7-layer construction that serves two functions: structural rigidity and thermal retention. Each layer is applied in sequence during manufacture, forming an integrated composite shell system.
Higher insulation efficiency reduces heating demand, lowers operating costs and extends the service life of pump and heater components.
- Layer 1: Aristech® acrylic interior shell
- Layer 2: Hand-coated vinyl reinforcement
- Layer 3: Spray-coated vinyl layer
- Layer 4: Spray-coated vinyl and fibreglass composite
- Layer 5: Unsaturated resin and fibreglass composite
- Layer 6: 30 mm spray-applied foam insulation
- Layer 7: Cabinet insulation cotton — flame-retardant
Balboa®
Control System

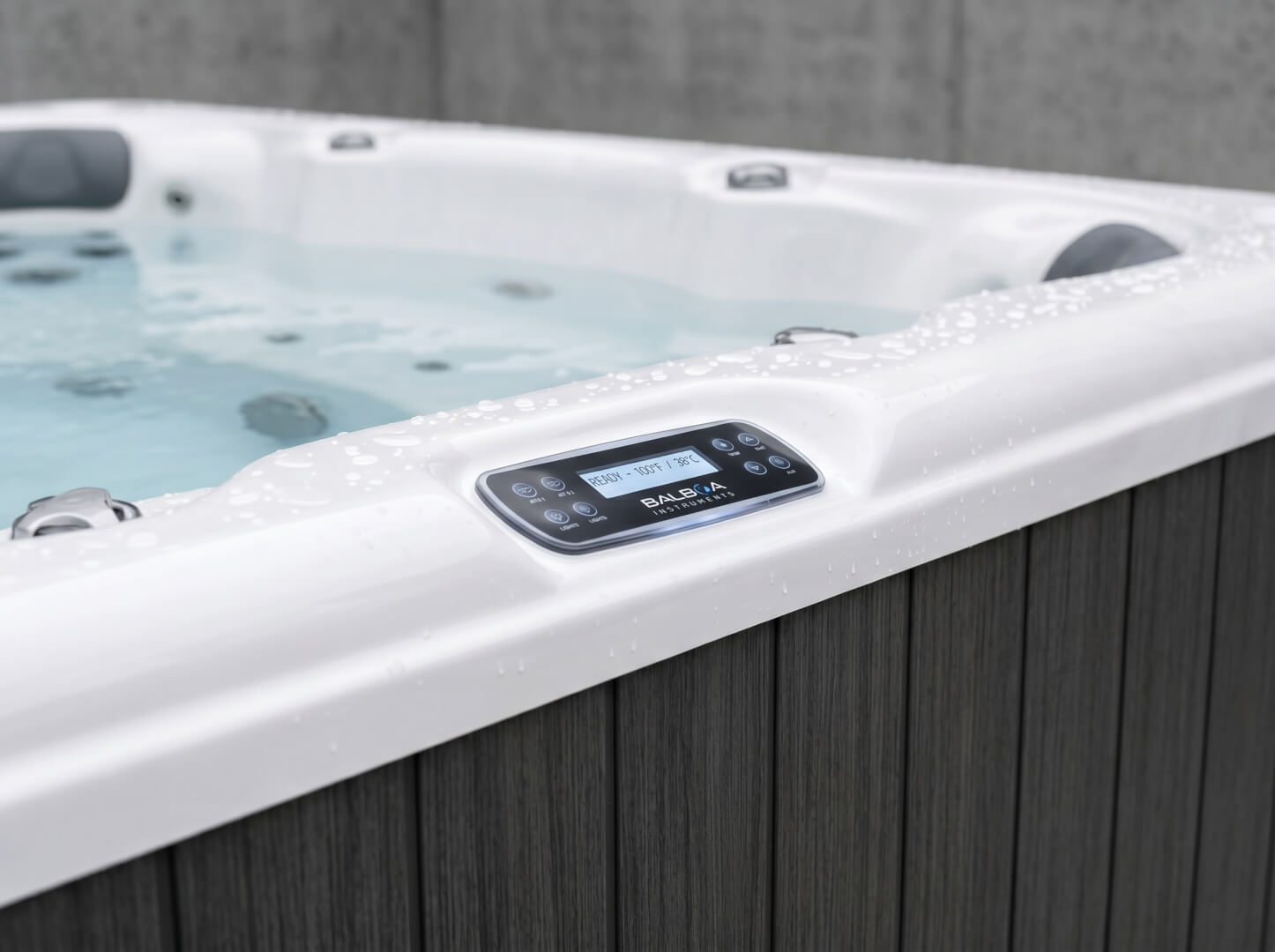

Balboa Water Group® control systems manage water temperature, jet operation, lighting and sanitation cycles. The control interface is integrated directly into the Aristech® acrylic shell.
- Balboa® spa control
- Integrated digital interface
- Aristech® acrylic shell — 3.2 mm
- Integrated ozone sanitation system
Interior
Equipment

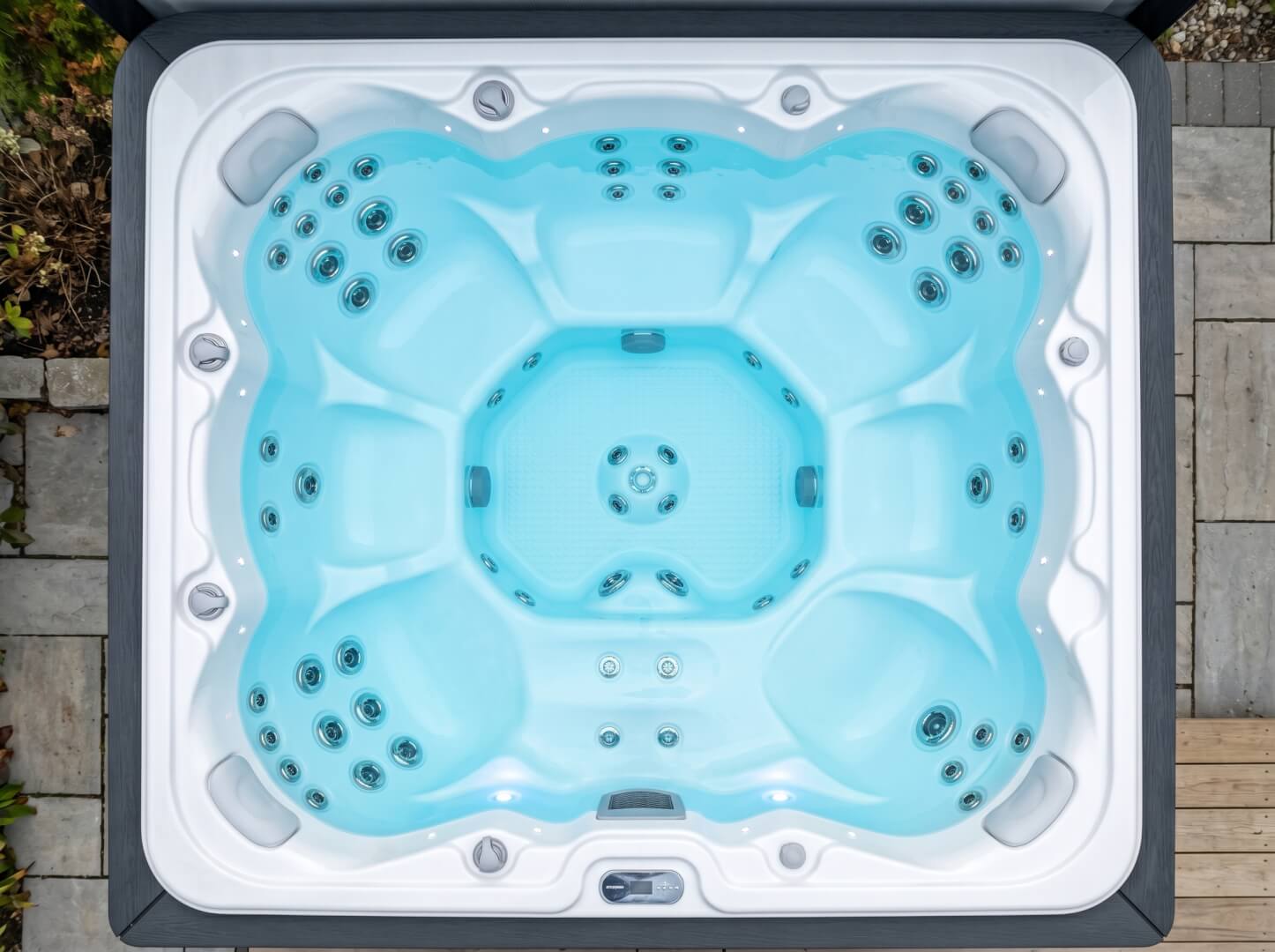

The seating layout is designed around targeted hydrotherapy. Jet positions are distributed across upper body, lower back, leg and foot zones. Integrated LED lighting provides a controlled ambient layer within the spa.
- Hydrotherapy jet layout per configuration
- Ergonomic seating contours
- Multi-colour LED lighting
- Bluetooth audio — 2 × 15 W waterproof speakers
- Aromatherapy system
- EVA high-density seating cushions
Jet Placement
Target Zones
Upper Body
Jets positioned at shoulder height target the trapezius, deltoid and upper back.
Lower Back
Lumbar jets address the lower back, positioned at sitting height for direct contact in the standard seated position.
Legs and Feet
Jets along the seat base and footwell target quadriceps, calves and soles. Foot-specific nozzles are positioned in the floor for direct pressure application.
Jet count and placement are confirmed per configuration on the pro forma invoice.
Defined Variants
- 2-person — from 2.15 m length, approximately 230 kg empty
- 4-person — mid-range dimensions, weight confirmed per specification
- 6-person — up to 2.45 m length, approximately 490 kg empty
Shell and Cabinet Finishes
- Shell colours: Cloud gray / Pearl white / Silver gray / Pure white
- Cabinet colours: Dark gray / Light gray / Teak / Mahogany
Electrical
- Supply: 220–240 V / 50 Hz
- Circuit: 32 A dedicated
- Certification: CE
Included in
Specification
Structural Elements
- Complete outdoor spa in selected shell and cabinet finish
- Aristech® acrylic shell — 3.2 mm
- 7-layer insulated construction
- 304 stainless steel frame
- WPC exterior cabinet
Operating Components
- Balboa® control system
- Pressurised hydrotherapy jet system
- Integrated ozone sanitation
- Multi-colour LED lighting
- Bluetooth audio — 2 × 15 W waterproof speakers
- Aromatherapy system
Standard Accessories
- EVA high-density seating cushions
Documentation and Coordination
- Written specification prior to production approval
- Pro forma invoice with confirmed scope and pricing
- Colour and finish selection confirmed in writing
- Delivery coordination based on site access
- On-location installation by coordinated partners
- Electrical connection and operational verification
- Water treatment and maintenance guidance
Site Requirements
Surface and Foundation
The Cove requires a level, load-bearing surface capable of supporting the filled operating weight. A concrete pad, reinforced paver base or structural deck is appropriate. Load data is confirmed per configuration for verification by the contractor or project architect.
Water Supply
Access to a clean water supply is required for filling. A standard garden hose connection is sufficient.
Electrical
A dedicated, hardwired electrical circuit is required.
- Supply: 220–240 V / 50 Hz / 32 A dedicated
- Installation by a licensed electrician is required
- Electrical specifications provided in advance
Delivery Access
Empty weight ranges from 230 to 490 kg depending on configuration. Vehicle access to within a practical distance of the installation point is required. Crane or lifting equipment is coordinated where needed. Access is assessed during the specification stage.
Global Logistics

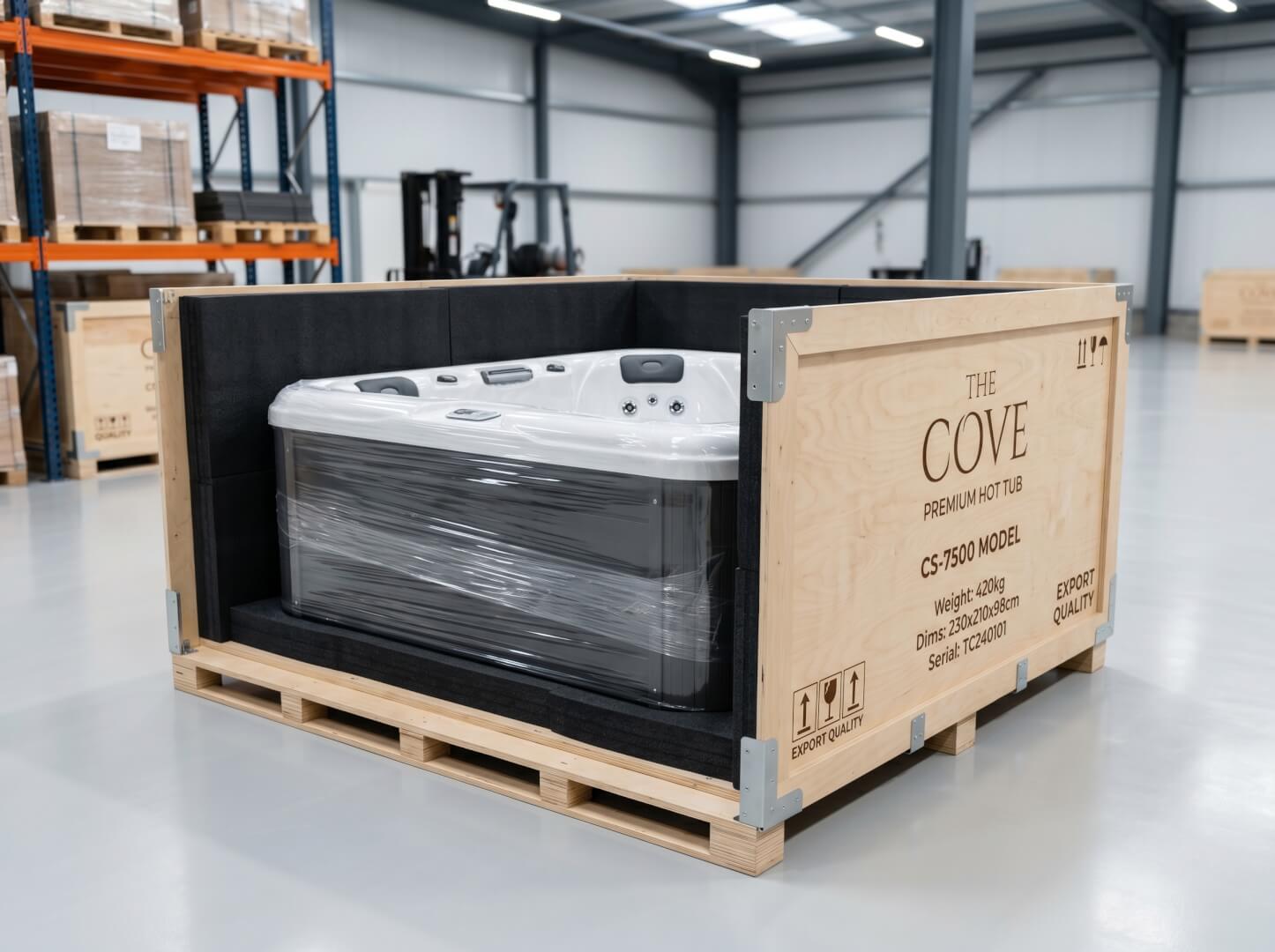

The Cove is prepared for international transport with reinforced export packaging designed to protect the shell, cabinet and internal systems throughout transit. Delivery terms are confirmed per destination prior to production approval.
- Length range: 2.15 m to 2.45 m
- Height range: 0.78 m to 0.96 m
- Empty weight: 230 kg to 490 kg
- Delivery: DDP worldwide
- Installation: Coordinated installation partners
Production Certifications
The Cove is manufactured in a production facility holding the following independently audited certifications. These are factory-level certifications, not OxiusPro brand claims.
- CE — European Conformity
Manufacturer Coverage
- Structure and systems: 12-month manufacturer warranty
Exact warranty terms are stated in the written specification. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
Extended Coverage
- Extended warranty options available on request
- Post-installation care guidance provided
- Water treatment and maintenance schedule included
Confirmed
Per Project
Certain specifications depend on configuration, destination and site conditions. These are confirmed in writing before production approval.
- Jet count and placement
- Balboa® control model per region
- Shell and cabinet colour selection
- Exact dimensions and filled operating weight
- Structural load data for architect or engineer
- Electrical circuit specification
- Full project timeline including delivery
- Confirmed pricing on pro forma invoice
- Extended warranty options
Confirmed in Writing.
Approved Before Manufacture.
Select and Specify
Configuration, colour selection and site details are submitted.
Commercial Documentation
A pro forma invoice is issued with full specification, confirmed pricing and delivery scope.
Approval for Manufacture
Production begins after written approval and deposit confirmation.
Delivery Coordination
Logistics and delivery are confirmed per destination and project scope.
Before You Proceed
- What is the Aristech® acrylic shell?
Aristech® is a US-based acrylic manufacturer. The 3.2 mm shell provides structural rigidity and colour stability. The surface is non-porous.
- What does the Balboa® control system manage?
Water temperature, jet operation, lighting and sanitation cycles. The exact Balboa® model is confirmed per region in the written specification.
- Can this spa be installed on a terrace or elevated deck?
Subject to structural verification. Filled operating weight is confirmed per configuration. Load data is provided for assessment by the contractor or project architect.
- Is a dedicated electrical circuit required?
Yes. The Cove requires a 220–240 V / 50 Hz / 32 A dedicated circuit. Installation by a licensed electrician is required.
- What warranty applies?
A 12-month manufacturer warranty applies to structure and systems. After the warranty period, servicing, maintenance and replacement parts are arranged at the owner's cost.
- Are listed prices fully inclusive?
Prices apply to base configurations. Delivery, duties, customs clearance, site placement and installation are confirmed separately per destination and project scope.
Request Your Pro Forma Invoice
Submit your configuration, colour selection and destination details. Specification, pricing and delivery scope are confirmed in writing prior to production.
From USD 16,500
Submit EnquiryEvery order begins with written specification. No manufacture proceeds without your approval.
